Stone Column Design in Kilkenny: Ground Improvement on Soft Glacial Soils

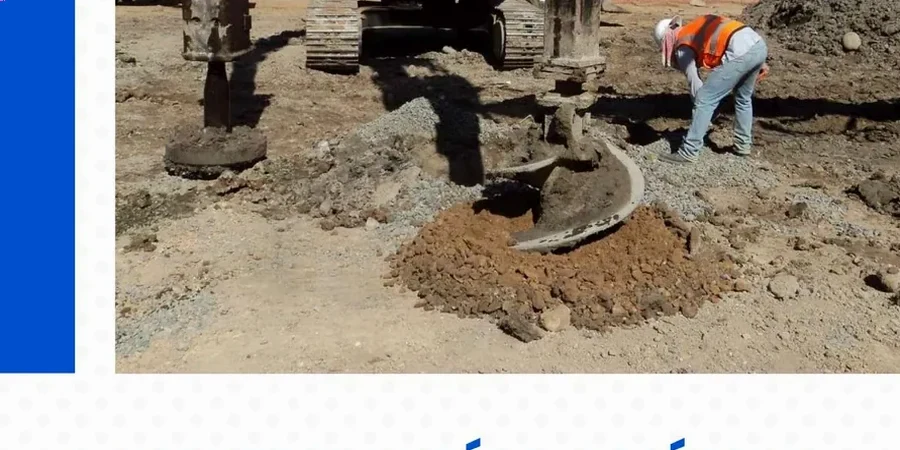

A warehouse extension near the River Nore hit refusal at 1.2 metres. The bore logs showed a classic Kilkenny profile: stiff gravelly CLAY over soft laminated silts, then limestone bedrock at 9 metres. Shallow footings were out of the question. We designed a grid of stone columns at 2.1-metre spacing to transfer load through the weak zone, bringing the composite friction angle above 38 degrees. The glacial till across much of the city, deposited during the Midlandian glaciation, often masks compressible lenses that only show up during a detailed CPT test. Without probing the full profile, you risk underestimating settlement by a factor of three. Our design process starts with in-situ data, not textbook assumptions.

A well-designed stone column grid can double the bearing capacity of a soft silt—but only if the column length reaches below the critical depth where confinement stress equals the column's yield pressure.

Methodology and scope

What we see repeatedly in Kilkenny is a sharp contrast between the well-drained gravels on the western terraces and the soft alluvium along the Breagagh and Nore corridors. Stone column performance in these two settings differs markedly. In the gravels, we achieve densification-dominated improvement, confirmed with a plate load test before structural design proceeds. In the silty alluvium, the mechanism shifts to reinforcement, and we specify wider diameters (800–1000 mm) to prevent bulging failure under the upper crust. The installation method matters, too: wet top-feed vibro-replacement handles the high water table found below 2 metres in the city centre, while dry bottom-feed works well on the better-draining slopes near St. Canice's. When organics are present, we cross-check with grain size analysis to confirm fines content below 15% before committing to a column-only solution.

Local geotechnical context

IS EN 1997-1:2005 mandates a limit state design for ground improvement, and the Irish National Annex sets specific partial factors for stone columns that many designers overlook. The biggest technical risk in Kilkenny is underestimating the negative skin friction that develops when column installation remoulds the surrounding silt, temporarily dropping its shear strength before consolidation recovery. If columns are placed too close to a river wall or an existing shallow foundation, this remoulding zone can trigger a local bearing failure during the curing window. We always specify a minimum setback of three column diameters from adjacent structures and instrument the first three columns with settlement plates when working within 15 metres of the Nore's flood defence walls.

Reference parameters

Parameter	Typical value
Typical column diameter	600–1000 mm
Replacement ratio	10–35% of treated area
Post-treatment composite friction angle (Ø')	35°–42°
Target settlement reduction (S/B ratio)	30–60% reduction
Maximum treatable undrained shear strength (Cu)	15–50 kPa (dependent on vibrator)
Typical column length in Kilkenny basin	4–12 m
Applicable Eurocode	IS EN 1997-1:2005 + NA

Associated technical services

Design with Numerical Verification

We develop the column grid, length, and diameter using the Priebe method, then verify composite settlement and stress distribution with a PLAXIS 2D axisymmetric model. The package includes a bearing capacity check under the SLS and ULS load combinations specified in the Irish National Annex.

QA/QC and Post-Installation Testing

Once the specialist contractor completes the columns, we run zone load tests and single-column modulus tests to confirm the improvement ratio matches the design. We also carry out CPT soundings between columns to verify the densification achieved in the inter-column soil.

Frequently asked questions

What does stone column design cost for a typical site in Kilkenny?

For a single residential or light commercial plot in the Kilkenny area, our design and testing package ranges from €1,140 to €5,380. The final figure depends on the number of columns, the depth of treatment, and the required post-installation verification. A small extension on 8-metre columns with a zone load test will sit at the lower end; a full industrial unit requiring PLAXIS 2D modelling, CPT verification, and a settlement monitoring plan moves toward the upper bound.

When are stone columns a better choice than piling in Kilkenny?

Stone columns excel when the soft layer is less than 12 metres thick and the groundwater is high—common conditions in the Nore valley. They install faster than bored piles, generate no spoil, and can treat the entire building footprint uniformly. Piling becomes the better option when bedrock is deeper than 15 metres or when the structure imposes very high point loads that exceed the load-transfer capacity of a vibro-replaced column.

How do you confirm the stone columns have achieved the design specification?

We use a combination of post-installation CPT soundings through the inter-column soil and zone load tests on groups of three to five columns. The CPT data confirms the densification ratio and homogeneity; the zone load test provides a direct measurement of the composite modulus. Both results are plotted against the design assumptions and form part of the validation report submitted to the building control authority.
